I recently got my hands on the Blackmagic Camera ProDock and used it to build out a production-ready iPhone camera rig. With a single USB-C cable, I was able to connect an external SSD, wireless microphone, HDMI monitor, and an Ethernet adapter to my iPhone 16 Pro Max.
It all comes together courtesy of the Blackmagic Camera ProDock, a $295 iPhone accessory announced alongside the iPhone 17 Pro last September. It, coupled with a few spare parts I had lying around, allowed me to turn last generation’s flagship iPhone 16 Pro Max into a powerful ProRes-shooting and live-streaming camera rig.
Blackmagic Camera ProDock Specifications
- USB-C uplink connection
- External genlock and timecode inputs (iPhone 17 Pro and iPhone 17 Pro Max)
- 2 x USB-C 3.2 expansion ports
- 1 x USB-C 2.0 port
- Locking 12V DC input
- HDMI output
- Includes 3.5mm stereo audio input and output
- 1/4-20 pin lock mounting points on top and bottom
- Supports iPhone 15 Pro/Max, 16 Pro/Max, or 17 Pro/Max

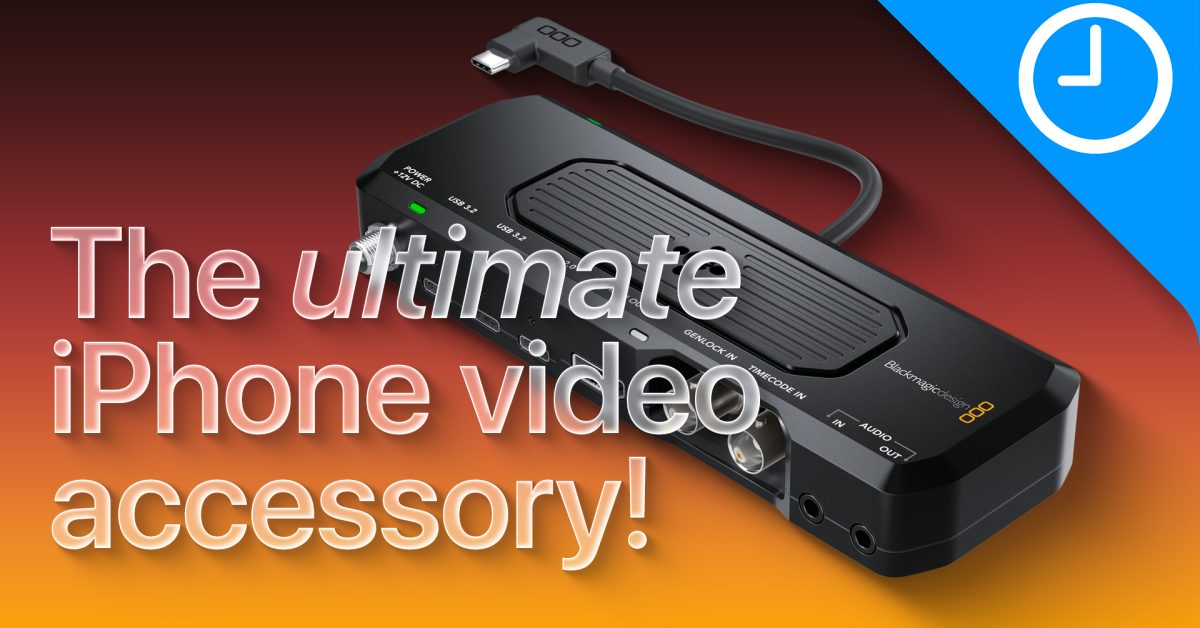

Video: The ultimate iPhone accessory
Subscribe to 9to5mac on YouTube for more videos
When the Blackmagic Camera Pro Dock was announced alongside the iPhone 17 Pro, the marketing focus was on the syncing capabilities enabled by Genlock and Timecode. And while that makes sense for the type of user this product targets, many so-called “regular” users can benefit from the dock as well.
While most normal users couldn’t care less about syncing multiple iPhones, CFR, and timecode syncing when editing footage, it stands to reason that a larger contingent of users would benefit from tripod mounting, alongside SSD, microphone, and external monitor connectivity. And that’s what I decided to focus on during my hands-on time with the Blackmagic Camera ProDock.
Advantages of an iPhone camera rig
Instead of managing power for each device on the rig, a single V-mount battery powers everything, including the ProDock, iPhone, and HDMI monitor. The rig lets me easily connect my iPhone with a single USB-C cable.
The ProDock includes a super-handy tally light on the front of the dock to indicate when recording has started in the Blackmagic Camera app, and an HDMI monitor provides far more flexibility when framing shots, especially selfie shots.
The Blackmagic Camera app can also display all the status indicators on the external display, so you can see important info like microphone levels, recording time, storage, lens, resolution, and battery life. You can also control and monitor the camera remotely from an iPad using a second instance of the Blackmagic Camera app.
Thanks to the attached 2TB Corsair EX400U SSD I mounted on my rig, I can shoot high-quality ProRes footage for far longer than I could with my iPhone’s 256GB of internal storage. When shooting in 4K HEVC, I get 82 hours of footage, allowing me to shoot for almost 3.5 days straight. And because I’m saving footage directly to an external drive, I can connect it to my Mac and start editing without having to offload footage from my iPhone.
Thanks to the audio input on the Blackmagic Camera ProDock, I can connect my Rode Wireless Pro receiver and achieve significantly better audio quality than the iPhone’s internal microphone. And connecting an Ethernet adapter to one of the dock’s USB-C ports lets me offload footage to the cloud faster and enjoy lower latency when live streaming to YouTube directly from the Blackmagic Camera app.
9to5Mac’s Take
The iPhone is already an amazing camera on its own, but there are key areas that make shooting video with an iPhone a decidedly worse experience than a standalone camera. The Blackmagic ProDock and the Blackmagic Camera app go a long way toward leveling the playing field, adding convenient features—external monitor support, high-quality audio, and wireless monitoring—that standalone camera users tend to take for granted.
If you’re serious about iPhone video, you likely recognize some of the shortcomings inherent with smartphone shooting. Building a rig like this goes a long way towards providing a much more capable and enjoyable video-taking experience. And, of course, you can tailor the build to your needs, adding as many or as few extras as you need.
